Part Name |
Standard No. 1 |
Standard No. 2 |
Standard No. 3 |
Standard No. 4 |
Base Socket
|
10A thru 20A
|
BC6 |
SUS304
|
PVC
|
SUS316
|
25A, 32A
|
FCD |
40A thru 65A
|
Screw Type |
FCD |
Flange Type |
SS400 |
80A and above
|
SS400 |
Orifice Plate |
20A and below |
BC6 |
SS304 |
PVC |
SUS316 |
25A and above |
SUS304 |
Cell Block Body |
C3604 |
SCS14 |
PVC |
SCS14 |
Strainer |
SUS304 |
SUS304 |
Aflon |
SUS316 |
Strainer Cap
|
Standard Product
|
C3604
|
SUS304
|
|
SUS316
|
For High Pressure,
High Temperature
|
Cover
|
SUS304 |
SUS304 |
Stopper (SUS304) |
SUS304 |
Tapered Tube
|
Pyrex Glass |
Pyrex Glass |
Pyrex Glass |
Pyrex Glass |
Float
|
SUS316
Glass |
SUS316
Glass |
Hastelloy C
Glass |
SUS316
Glass |
O-Ring
|
NBR |
NBR |
NBR, Teflon |
NBR, Teflon |
|
Note:
- Base Socket materials; FCD for Model FLY / PVC for Model FLW.
- On request materials other than listed can be manufacturered.
- □ Mark: For liquids,
- □ Mark: For gasses. C3604 = Copper Alloy.
|
|
Max. allowable pressure & allowable temperature: |
Tapered Tube |
Materials |
Strainer Cap |
O-Ring |
Max. allowable pressure |
Max. allowable Temperature |
Pyrex Glass
|
No.1
No.2
No.3 |
Acrylic resin |
NBR |
5kgf/cmG |
50°C |
C3604 SUS304 SUS316
|
NBR |
20kgf/cmG |
90°C |
Teflon |
20kgf/cmG |
120°C |
No.4 |
PVC |
NBR, Teflon |
5kgf/cmG |
50°C |
|
Note:
- The above Max. allowable pressure is for Cell Block (Indicator)
- Specify flange standard for Base Socket based on operating pressure
|
|

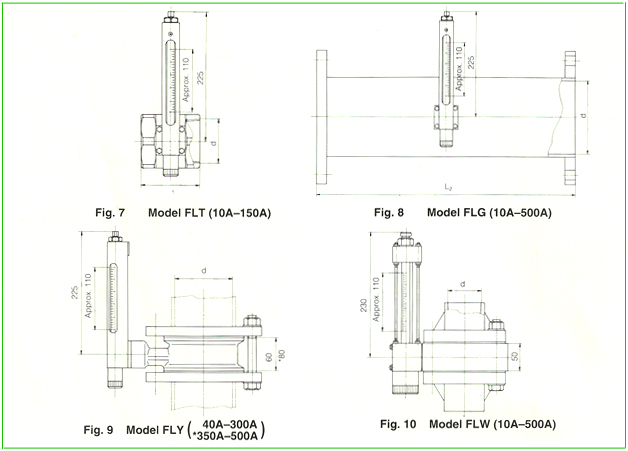

Standard flow range & dimension table: |
|
|
Nominal Pipe Size d |
H2O (m3/h) |
Air (m3/h (ntp)) 1 atm 20° C |
L Size mm |
Flow Range |
One Scale |
Flow Range |
One Scale |
L1 (FLT) |
L2 (FLG) |
3/8B |
10A |
0.08 ~ 0.42 |
0.01 |
0.8 ~ 4 |
0.1 |
70 |
520 |
1/2B |
15A |
0.18 ~ 0.96 |
0.02 |
2 ~ 9.2 |
0.2 |
70 |
520 |
3/4B |
20A |
0.45 ~ 2.4 |
0.05 |
5 ~ 23 |
0.5 |
70 |
520 |
1B |
25A |
0.8 ~ 4.2 |
0.1 |
8 ~ 40 |
1 |
70 |
520 |
1 1/4B |
32A |
1.2 ~ 6.4 |
0.2 |
12 ~ 60 |
2 |
74 |
520 |
1 1/2 B |
40A |
1.8 ~ 9.4 |
0.2 |
18 ~ 90 |
2 |
85 |
520 |
2B |
50A |
3.5 ~ 18.5 |
0.5 |
35 ~ 175 |
5 |
90 |
520 |
2 1/2 B |
65A |
6 ~ 32 |
1 |
60 ~ 300 |
10 |
100 |
540 |
3B |
80A |
8 ~ 42 |
1 |
80 ~ 400 |
10 |
110 |
540 |
4B |
100A |
16 ~ 80 |
2 |
160 ~ 800 |
20 |
120 |
540 |
5B |
125A |
25 ~ 125 |
5 |
250 ~ 1250 |
50 |
130 |
540 |
6B |
150A |
35 ~ 180 |
5 |
350 ~ 1700 |
50 |
130 |
540 |
8B |
200A |
60 ~ 320 |
10 |
600 ~ 2800 |
50 |
|
540 |
10B |
250A |
90 ~ 480 |
10 |
900 ~ 5000 |
100 |
|
540 |
12B |
300A |
160 ~ 820 |
20 |
1600 ~ 7800 |
200 |
|
540 |
14B |
350A |
200 ~ 1000 |
20 |
2000 ~ 9500 |
200 |
|
540 |
16B |
400A |
300 ~ 1500 |
50 |
3000 ~ `4500 |
500 |
|
540 |
18B |
450A |
400 ~ 2000 |
50 |
4000 ~ 19000 |
500 |
|
540 |
20B |
500A |
500 ~ 2500 |
50 |
5000 ~ 24000 |
500 |
|
540 |
|
Note:
- Flow unit for AIR: m3/h (ntp) = Nm3/h
- Flow Meters with a scale engraved under specified fuild and flow range can be supplied.
- On request non-standard Flow Meter (bigger size) can be manufactured.
- Available size for Model FLY is 40A to 500A .
|
