Large Capacity Flow Meter
Model RK1950AP SeriesAmber tapered tube with secure structure

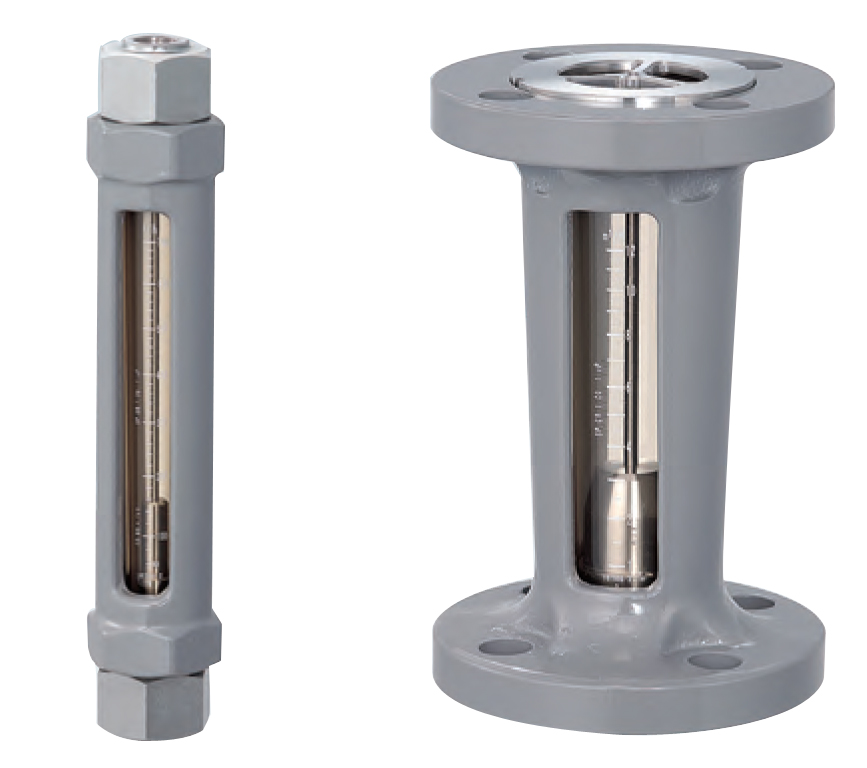

Treaded Type Flange Type
Features
- Float receiver functions also as a joint, for secure piping
- The block tapered tube has an O-ring seal
- The integral housing protects the tapered tube
- The tapered tube made of engineering plastic is impact-resistant
Standard Specifications
| Accuracy | ±2%F.S | |
| Max. Operating temperature | 20°C | |
| Max. Operating pressure | 1 MPa for 40 A or less | 0.8 MPa for 50 A or more |
| Direction of flow | Bottom → Top | |
| Coating | Finish color: Gray (Close to Munsell N - 6.5) Epoxy powder baking |
|
| Connection Standard | JIS 10K-RF 10A-100A RC female thread 3/8 - 1 inch |
Flange only ANSI 150#RF, DIN |
| Part name | Material |
| Float receiver | SUS304 |
| O-ring | NBR |
| Tapered tube | Polysulfone resin (Transparent amber) |
| Housing | Ductile cast iron: FCD400 |
| Rod | SUS304 |
| Float | SUS304 |
| Bore | For Water | For Air |
| 10A | 1.5-10L/min | 120-400L/min |
| 15A | 1.5-15L/min | 120-500L/min |
| 20A | 1.5-30L/min | 0.12-1m³/min |
| 25A | 9-100L/min | 0.35-3.5m³/min |
| 32A | 60-150L/min | 2.5-6m³/min |
| 40A | 90-200L/min | 3-7m³/min |
| 50A | 80-300LL/min | 3-10m³/min |
| 65A | 250-500L/min | 9-18m³/min |
| 80A | 250-500L/min | 9-18m³/min |
| 100A | 400-900L/min | 15-30m³/min |

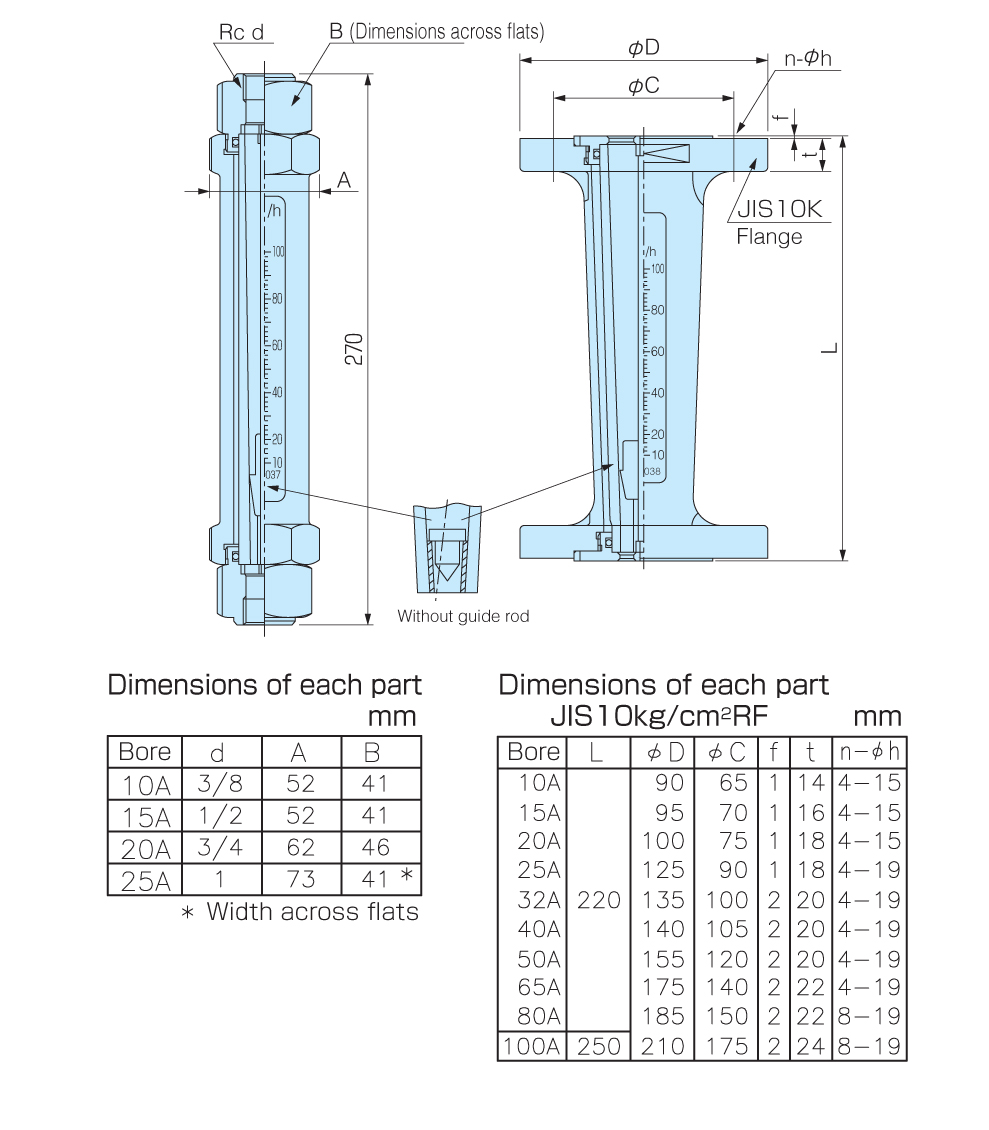

Dimension

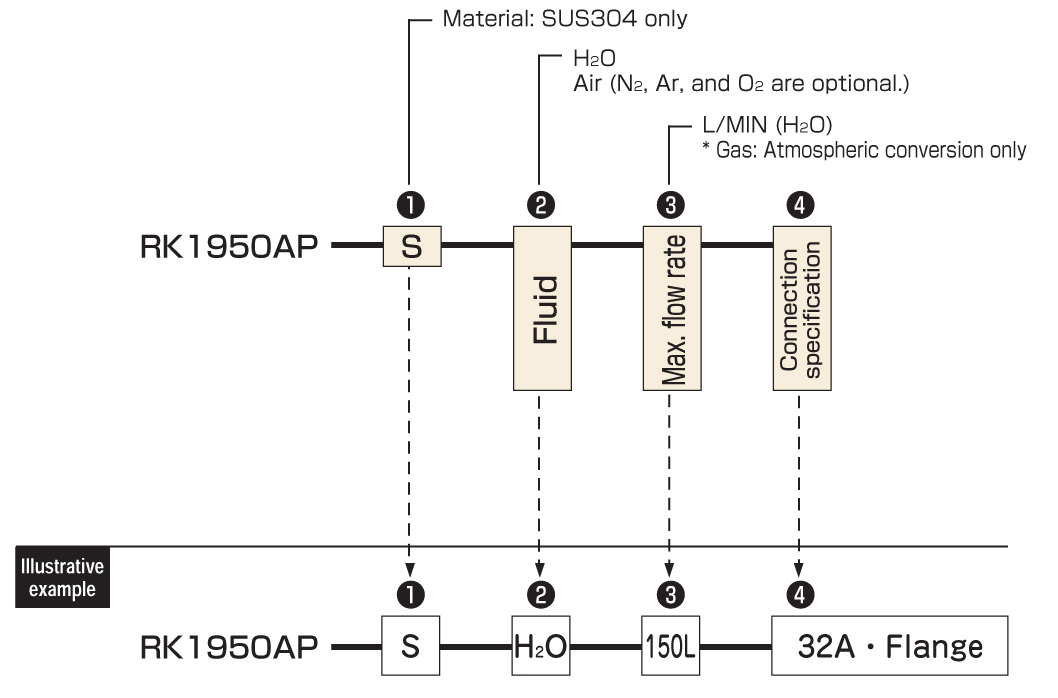

ORDERING
* Refer to "Ordering" and "Illustative example" when placing an order or requesting a quotation. Fill in the blanks in the "Order/Quotation Request Card" at the end of he catalog, and send the card by fax.
