Acrylic Resin Flow Meter

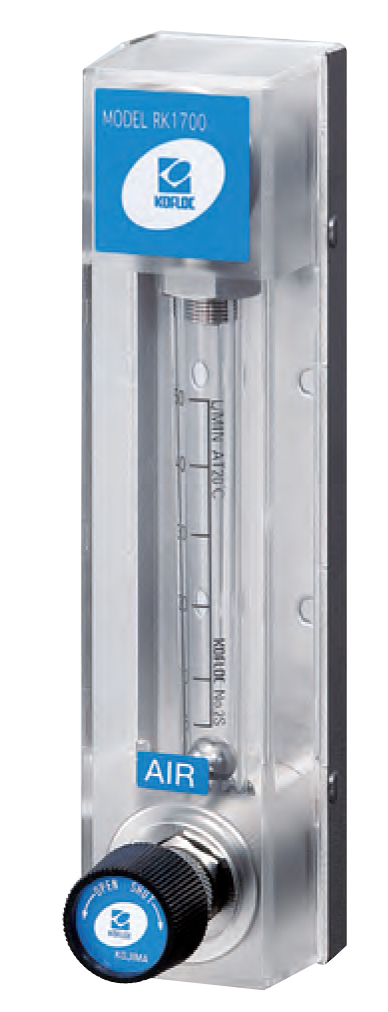

Model RK1700 SeriesThe Model RK1700 Series Flowmeter center the focus on cost reduction using SUS 316 as the material of construction. This flowmeter covers flow ranges from 1 L/MIN to 50L/MIN and can be shipped in one week after the customer's purchase order
Features
- Very reduced price
- One-week delivery
- Compact design
Notes:
- Operating temperature is 20°C (at atmospheric pressure)
- The needle is located at the bottom. (Standard specification)
- Supply pressure, standard:0.1 MPa to 0.3 MPa
Standard Specifications
| Fuilds | 1L, 5L, 10L, 30L, 50L/MIN (AT20°C) | |
| Flow Range (Full scale) | Use for Air, N2 and O2 exclusively | |
| Accuracy | FS ±7% | |
| Available Scale | 10:1 | |
| Proof Pressure | 0.5MPa | |
| Material | SS: SUS316, Prey, FKM, SUS304, SUS303, glass SB: Brass, Pyrex, NBR, SUS303, glass |
|
| Temperature Resistance | 60°C (MAX) | |
| Connection | Rc 1/4 | |
RK1700V

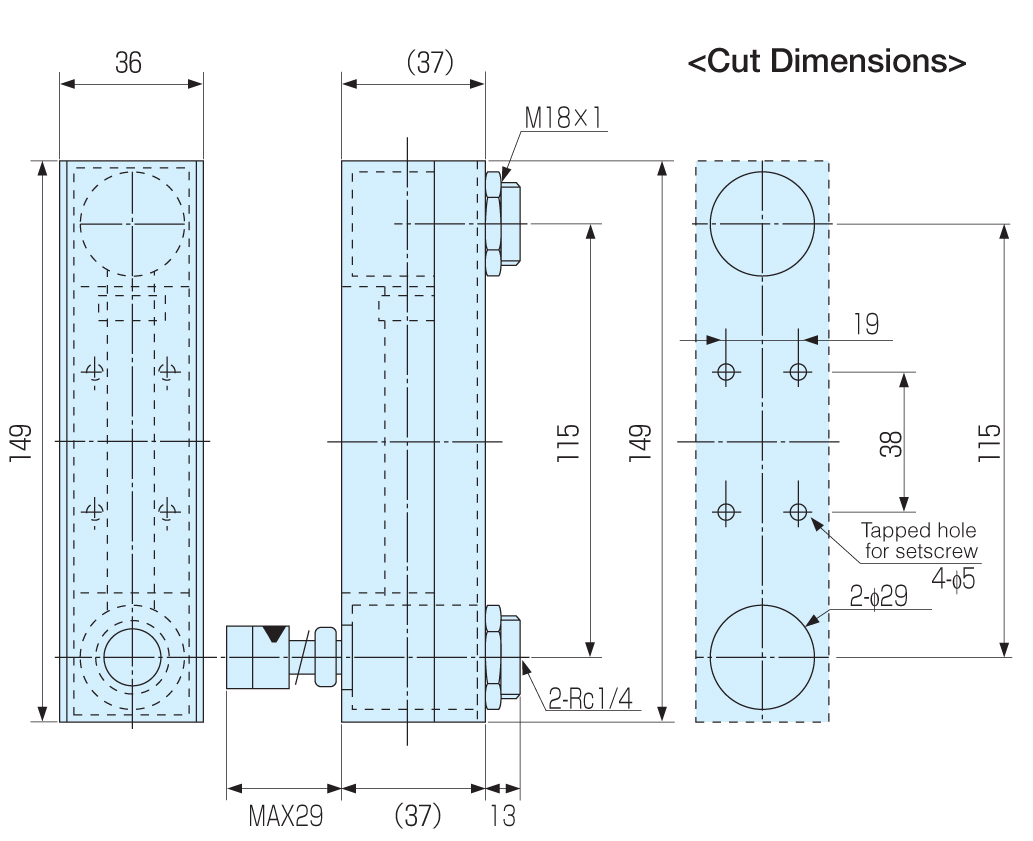

Dimension

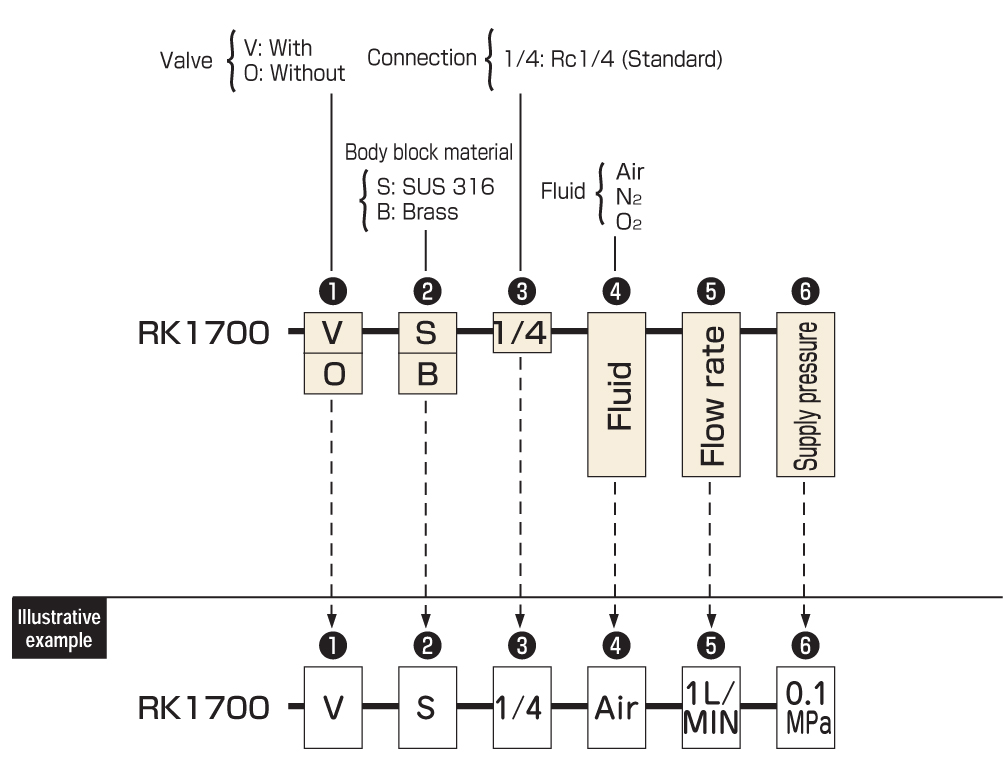

ORDERING
* Refer to "Ordering" and "Illustative example" when placing an order or requesting a quotation. Fill in the blanks in the "Order/Quotation Request Card" at the end of he catalog, and send the card by fax.
