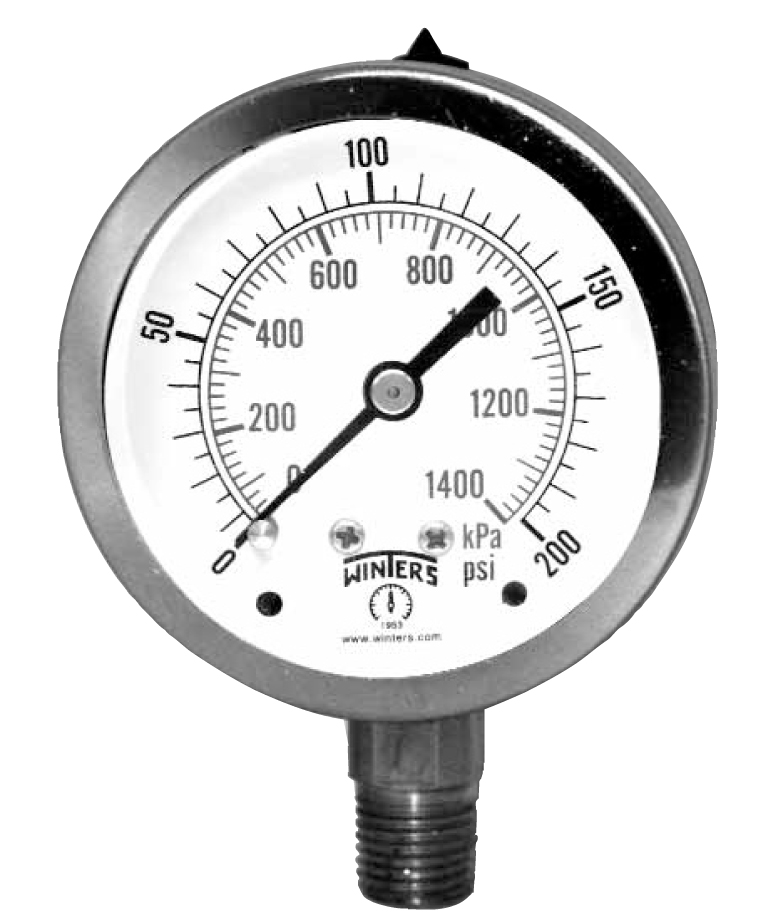

PFQ Liquid Fillable Quality Gauge
Features
- Stainless case protects against vibration and pulsation
- Back, bottom , or panel mounted
- Stainless Steel or Bass wetted parts
- Restrictor Screw standard
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, pressure washers, oil field equipment, pumps, Compressors and process systems
Specification
| Dial | 1.5"(40mm0, 2"(50mm), 2.5"(63mm), 4"(100mm) and 6"(150mm) white aluminum |
| Case | 304 Stainless steel |
| Lens | Polycarbonate |
| Ring | 304 stainless steel, Crimp-on |
| Pointer | Aluminum black |
| Socket | Brass or 316 Stainless steel |
| Connection | 1/8", 1/4", 3/8", 1/2" in NPT, BSP, BSPT |
| Bourdon Tube | Brass or Stainless steel |
| Movement | Brass or Stainless steel |
| Protection | IP65 |
| Over-pressure Limit | 25% for pressure up to 1400 psi (97 bar) 15% for pressure over 1400 psi (97 bar) |
| Pressure Range | From vacuum to 0-20000 psi (1380 bar) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient Temperature | -40°F to 150° (-40°C - 65°C_ dry, 14°F to 150°F (-10°C - 65C) glycerine filled |
| Accuracy | ±2.5% - 1.5"(40mm) and 2"(50mm) ±1.5% - 2.5"(63mm) ±1.5% - 4"(100mm) ±1.0% - 6"(150mm) |
| Options | U-Clamp Rubber boot Front Flange Back Flang Glycerine, Silicone, Halocarbon and FLuorolube fill Other connection sizes available upon reuqest |

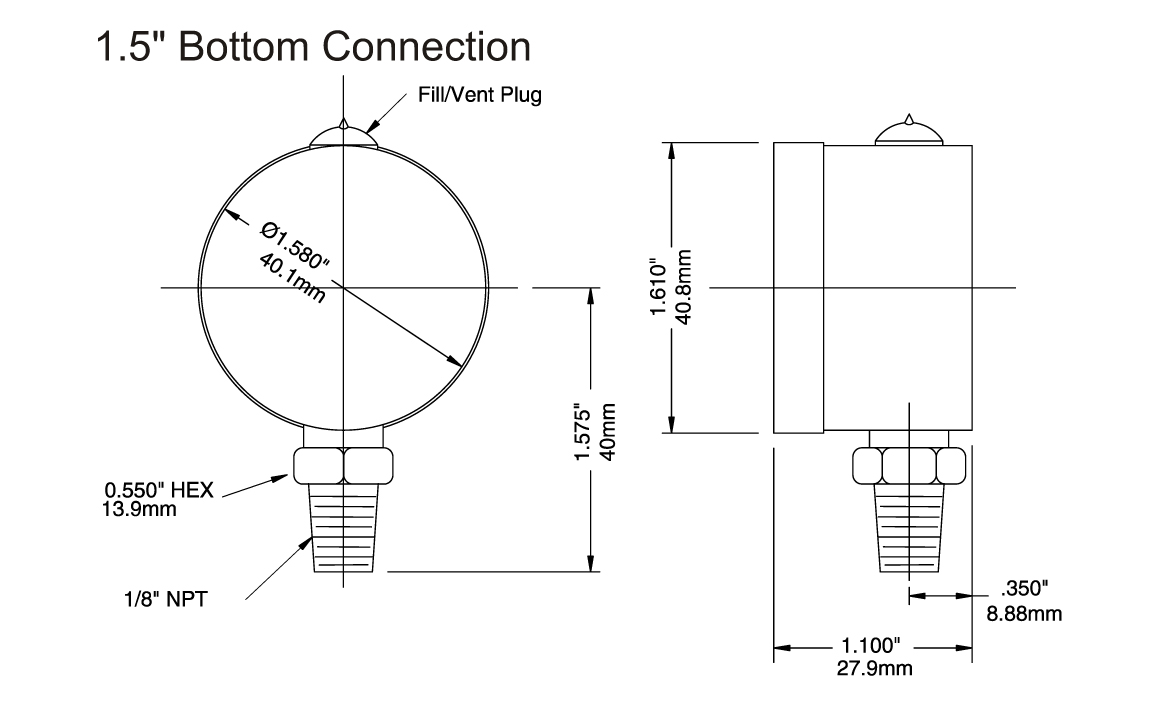

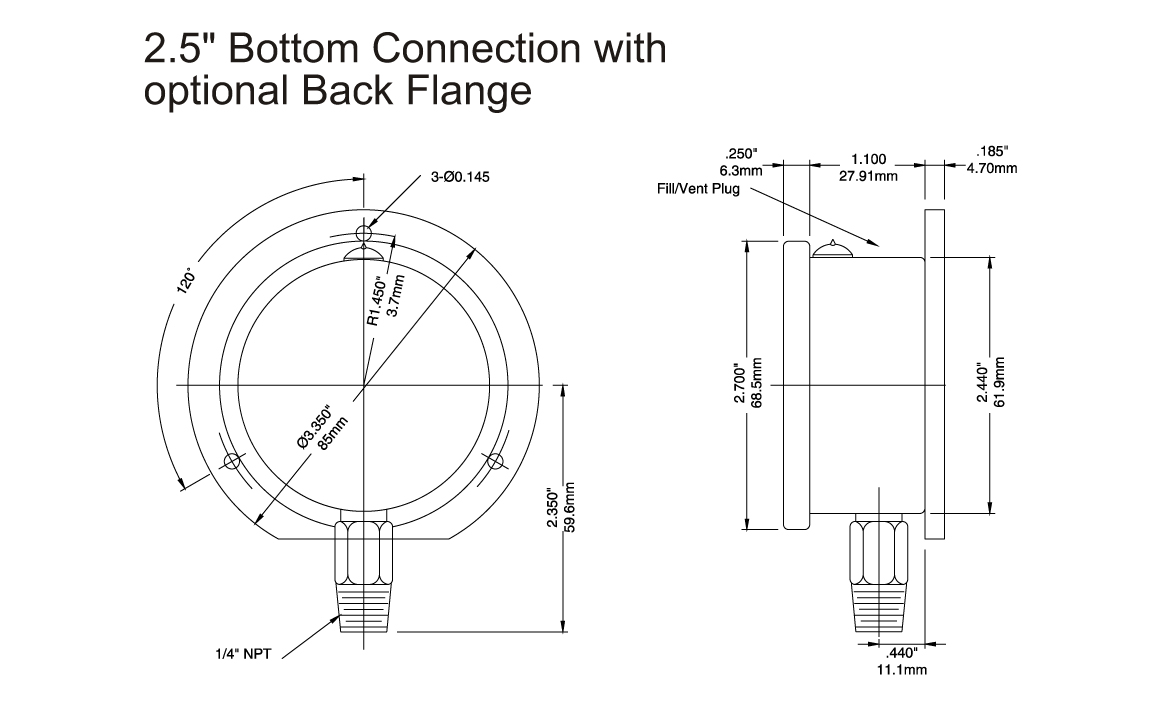

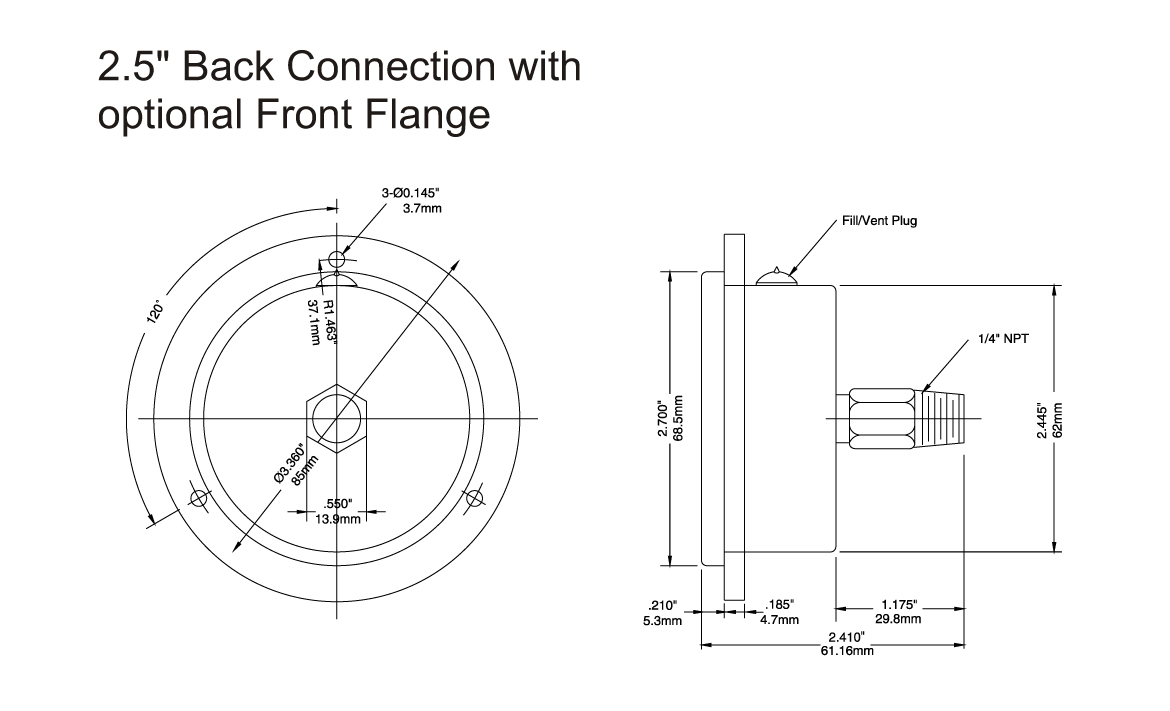

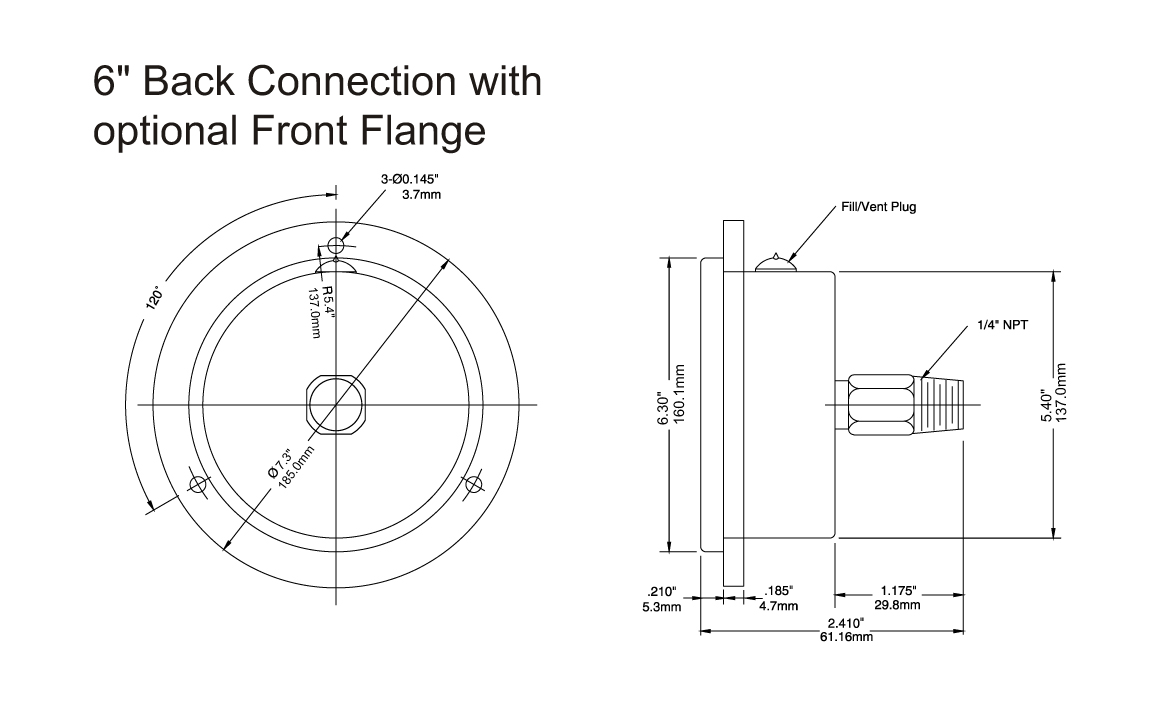

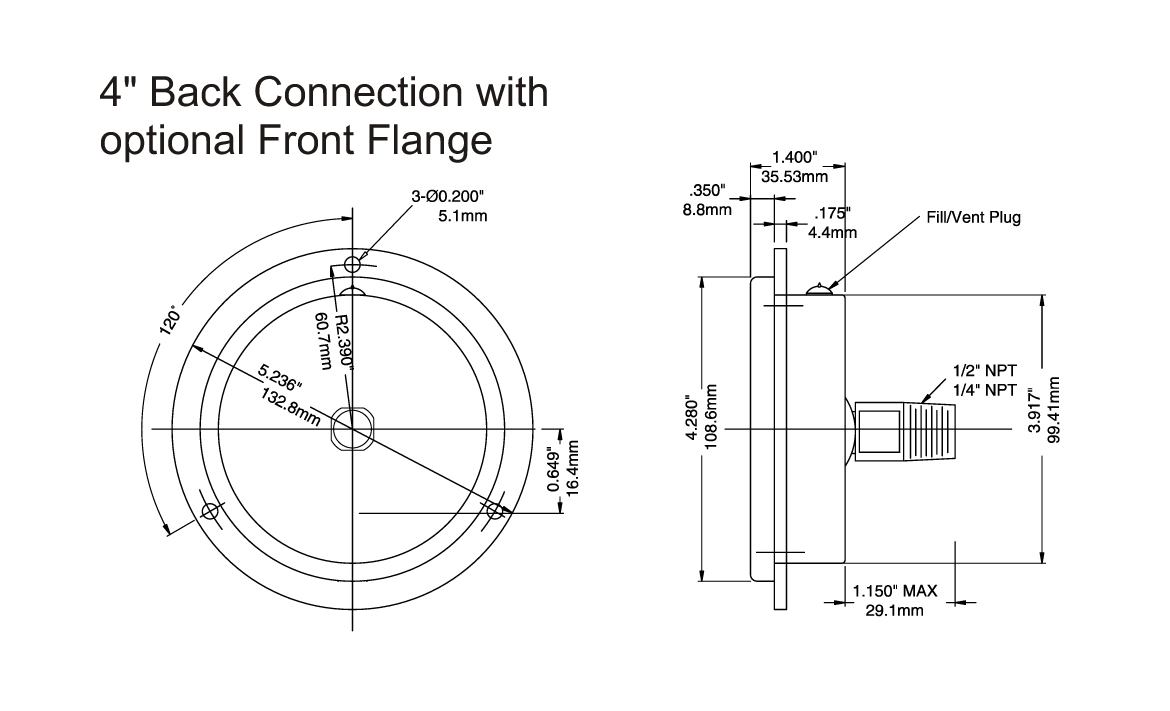

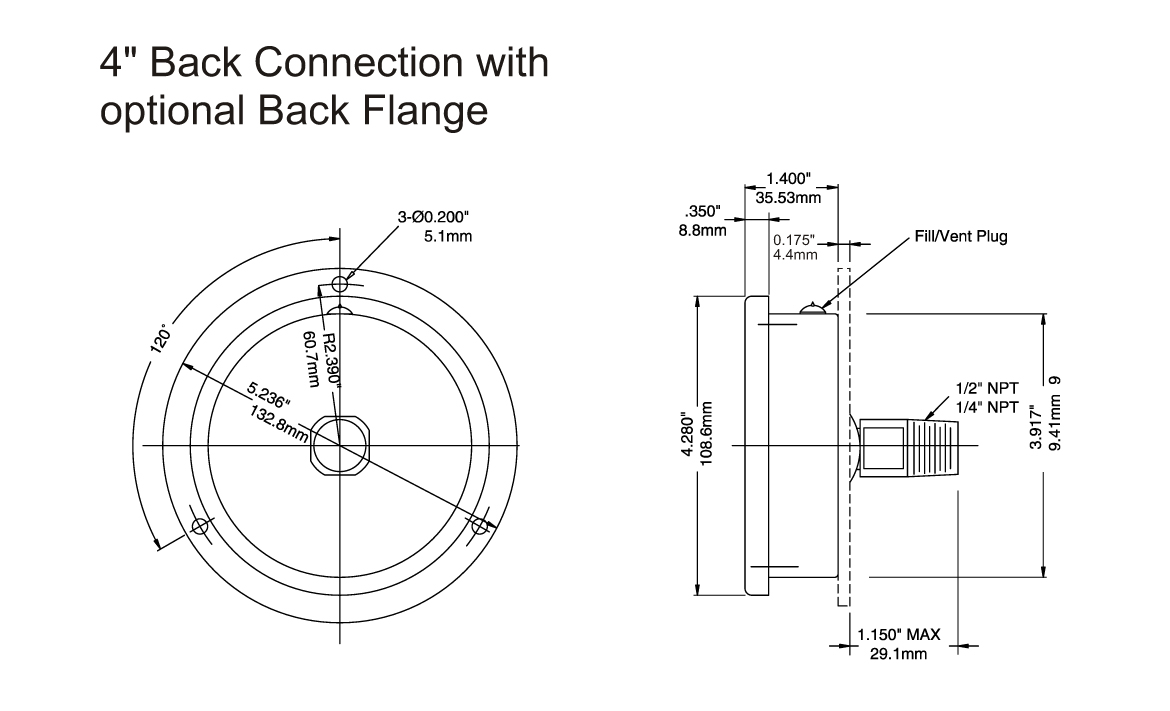

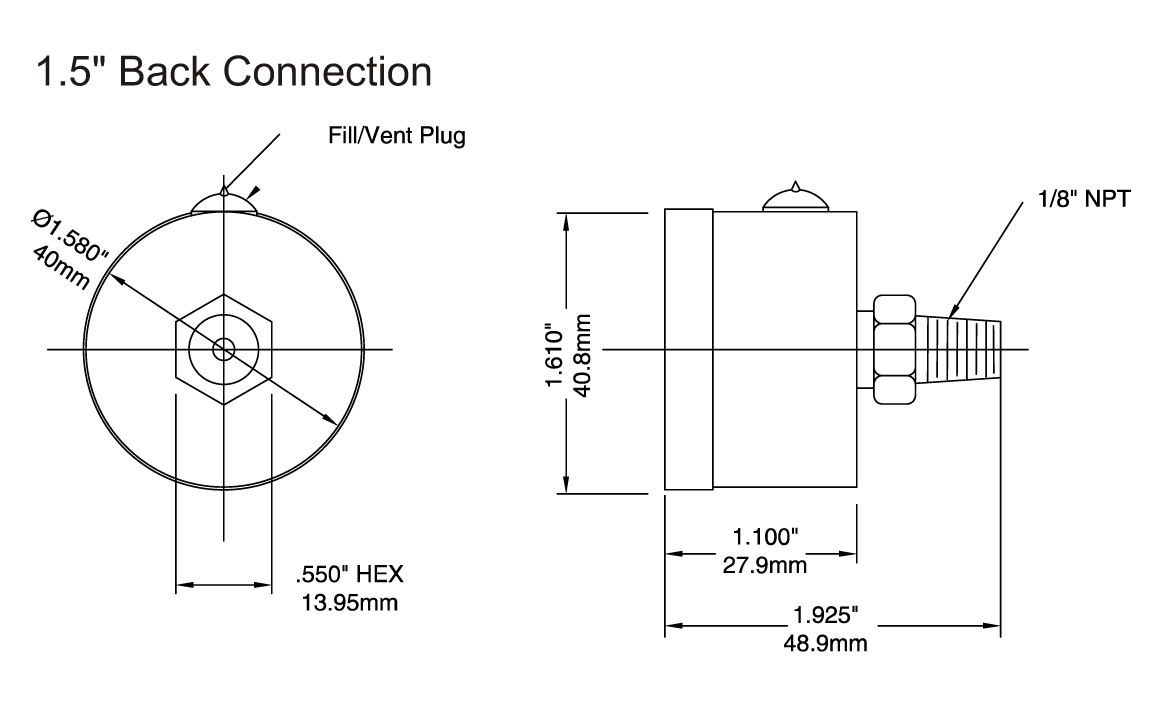

Dimensions
