PTG Test Gauge
Features
- Very accurate gauge, complete with calibration certificate traceable to NIST standards
- Mirroed anti-parallax dial
- Knife edge pointer

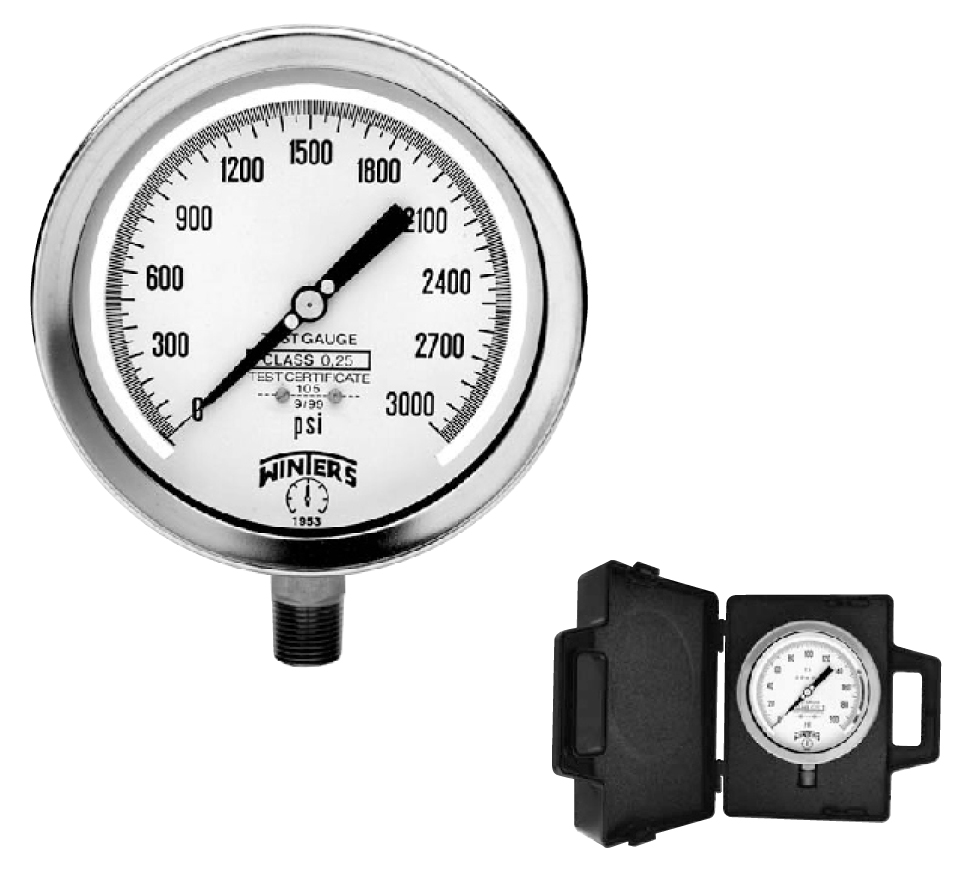

- Optional protective carrying and storage case
- Ranges between vacuum and 58000psi (4000 bar) for 6" dial
- Designed to be used where accuracy and repeatability are of prime imprtance
- Used in laboratories and instruments testing facilities
Specification
| Dial | 4"(100mm) white aluminum dial with back markings 6"(150mm) white aluminum dial with black markings both dials have mirror band for precise instrument readings |
| Case / Ring | 304 stainless steel with bayonet bezel |
| Lens | Polycarbonate - 4" Glass - 6" |
| Pointer | Aluminum, anodized black, micrometer adjustabl, knife-edge |
| Connection | 1/4", 3/8" and 1/2" in NPT, BSP, BSPT 5.8" -18 UNF or M16 x 1.5F for 36000-58000psi |
| Protection | IP55 |
| Welding | TIG |
| Bourdon Tube | 4" - 316 stainless steel for all ranges 6" - Copper berillium for ranges up to 8700psi (600 bar) NI-span C (Fe Ni Cr alloy) for ranges between 14000psi (100bar) and 58000psi (4000bar) |
| Pressure Range | 4" dial - from vacuum to 20000 psi (1380bar) 6" dial - form vacuum to 58000 psi (4000bar) |
| Over-pressure Limit | 30% of full scale value |
| Working Pressure | Maximun 75 % of full scale value |
| Calibration Conditions | 68°F ( ±5.4°F) 20°C (±3°C) for ambient and process temperatures at atmospheric pressure |
| Accuracy | 4"(100mm) ±0.5% full scale 6"(150mm) ± 0.25% full scale |
| Options | Carrying case Oxygen cleaning Laminated safety glass Solid front safety case for 6" Back connection with front flange Other ranges and connections sizes |

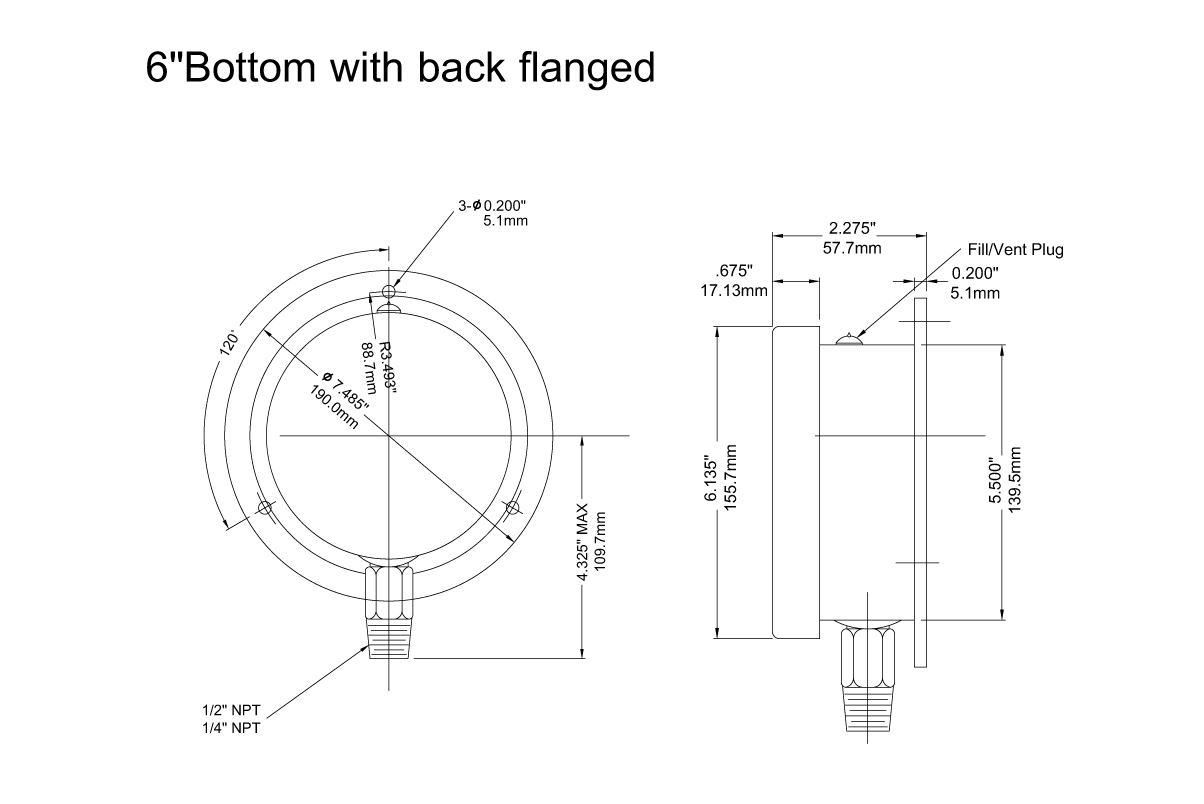

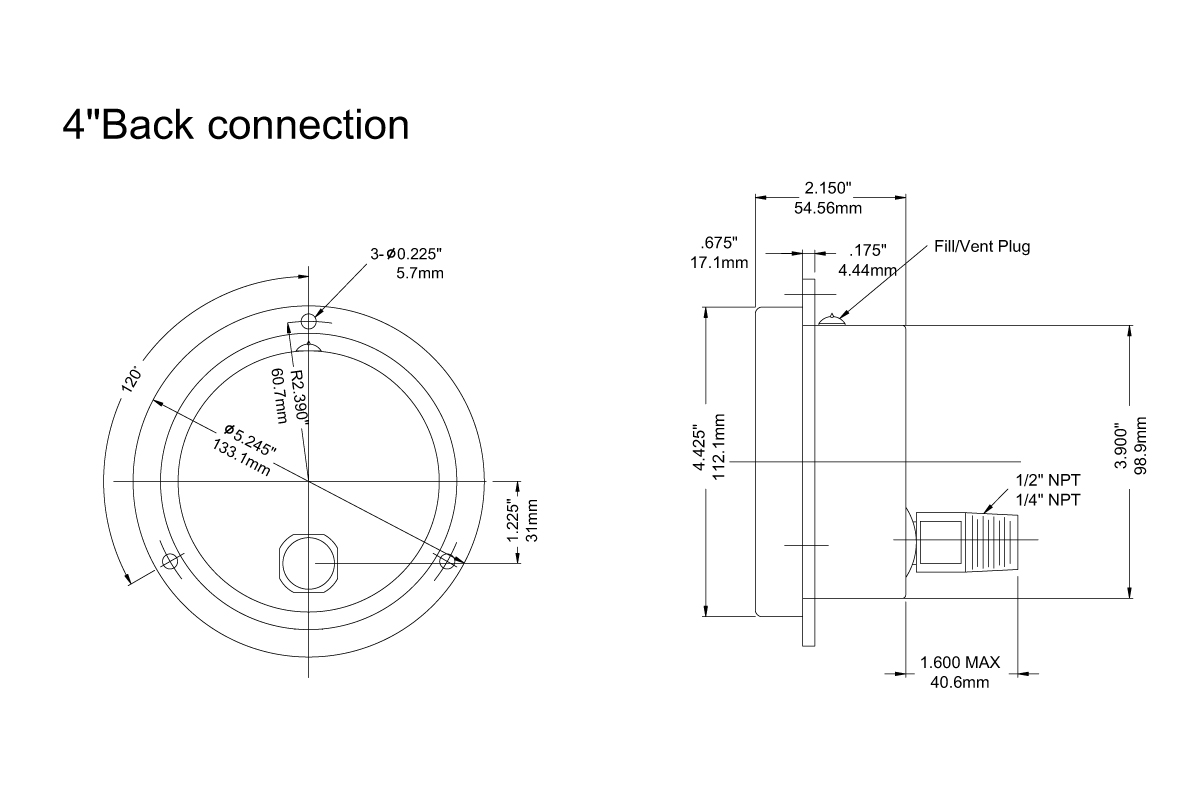

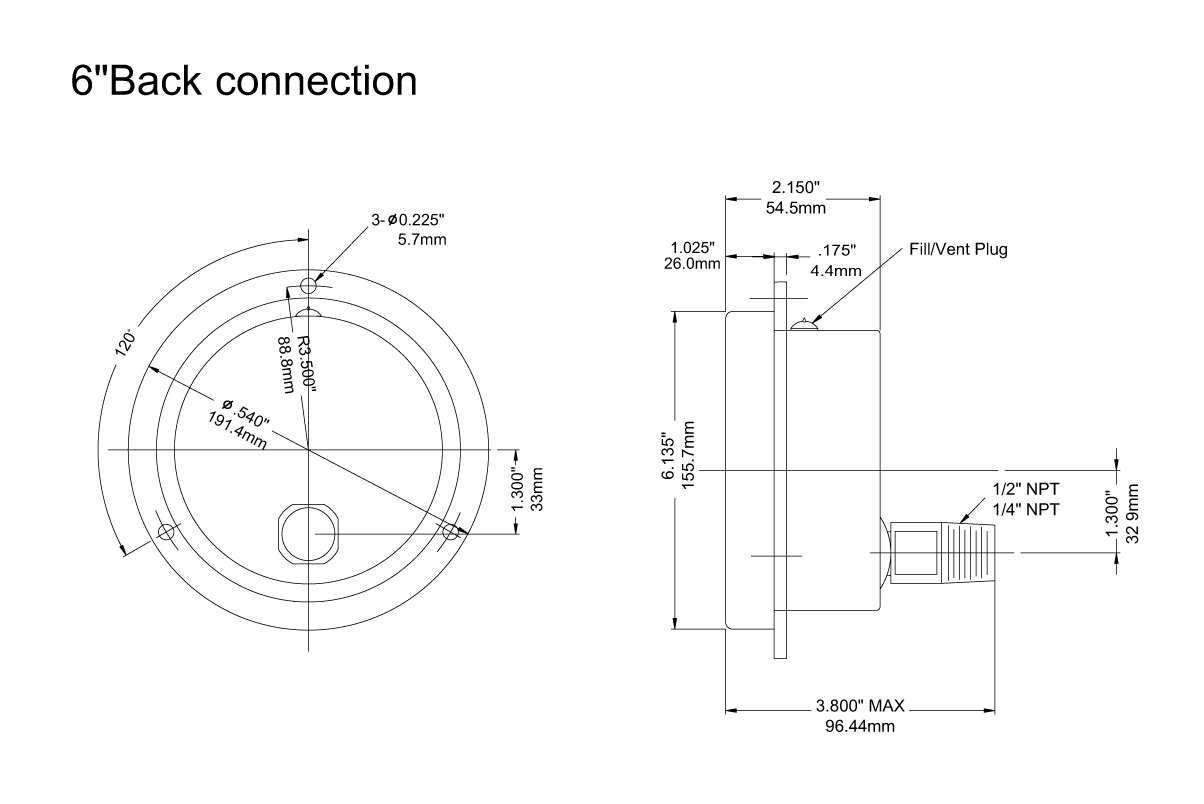

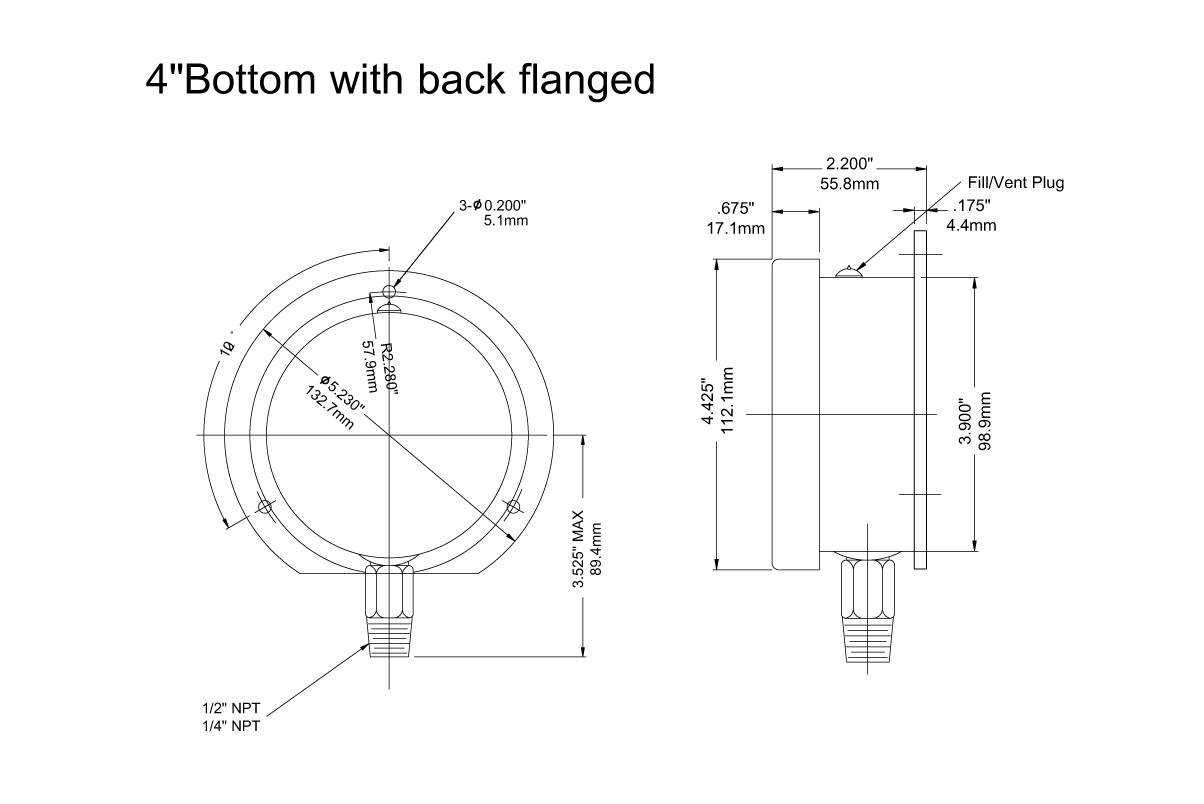

Dimensions
