Low-cost Mass Flow Meter with Display

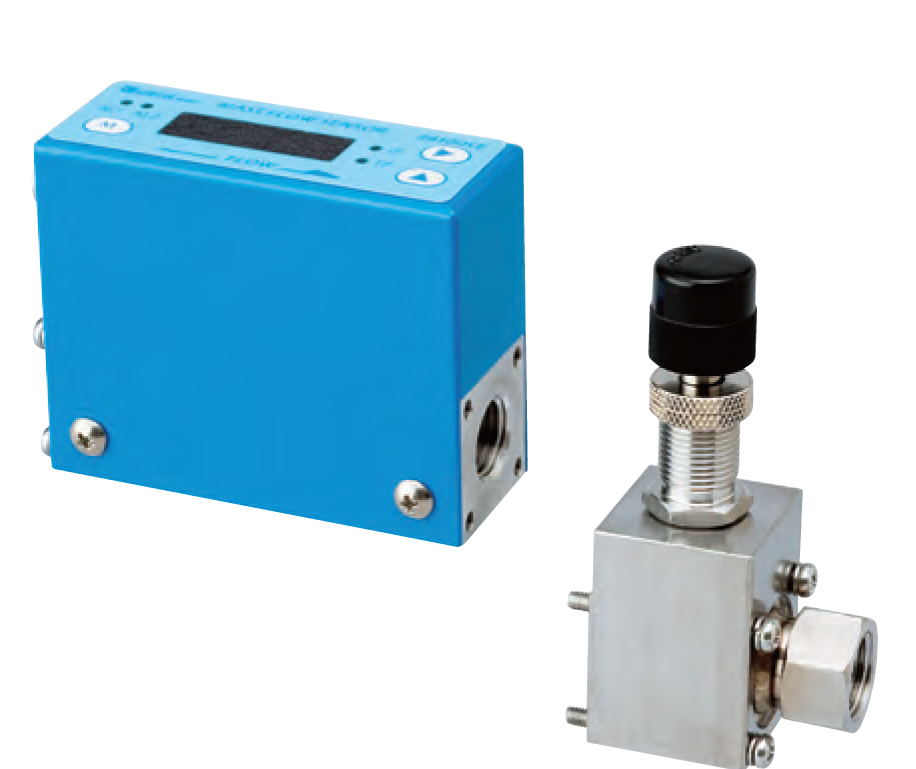

Model 3810DS II SeriesThe Model 3810DS II is a mass flow meter with a built-in display using a time-tested flow sensor. The 3810DS II displays total flow in addition to instantaneous flow, which is an improvement on the previous model 3810DS. Just like the 3810DS, the 3810DS II is also available with flow sensor and precision needle valve built into one piece
Features
- Precision needle valve for controlling and monitoring very low flow rates
- Two alarm outputs for flow monitoring
- Analog output for instantaneous flow and pulse output for total flow
- Compact and lightweight
- The display is built in and the meter only requires connetion to a 24-VDC power supply
- The meter measures mass flow and directly reads the flow. There is no need for flow correciton calculations based on themperature and pressure.

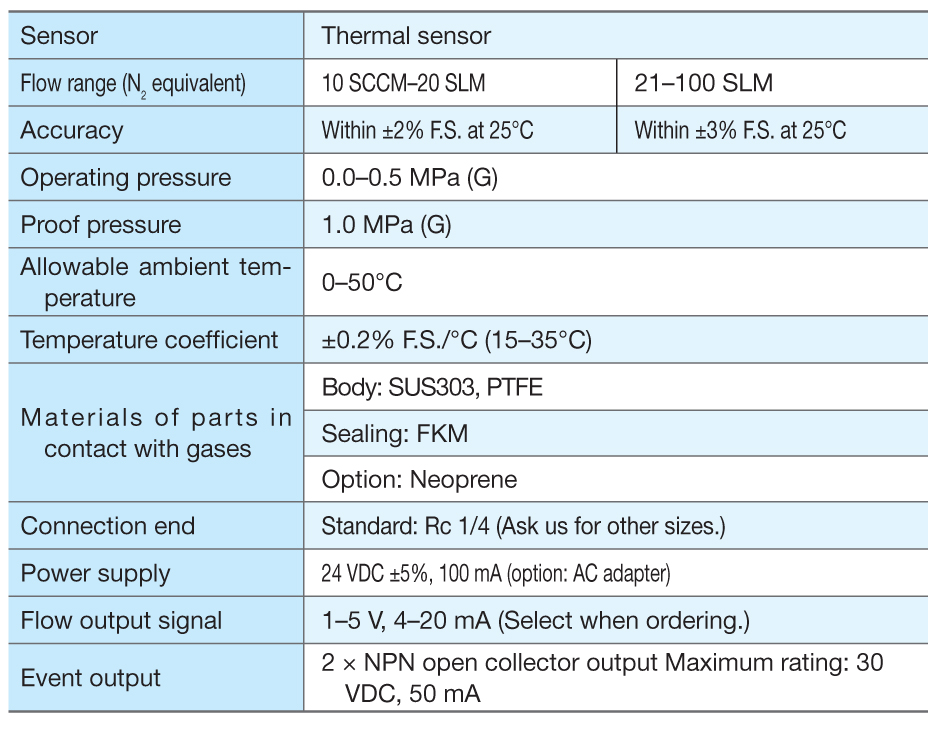

Standard Specifications
- Connect: 3810DS II end: HR10A-7R-6P (Hirose Electric)
- Cable end: HR10A-7P-6S (Hirose Electric)
Note
Specification relating to the flow range )e.g., flow range, accuracy and repeatablity) are expressed in N2 or air equivalent. The product will be built with the primary pressure of 300kPa or less and the secondary side open the atmosphere. For the details on the pressure requirement, ask us.

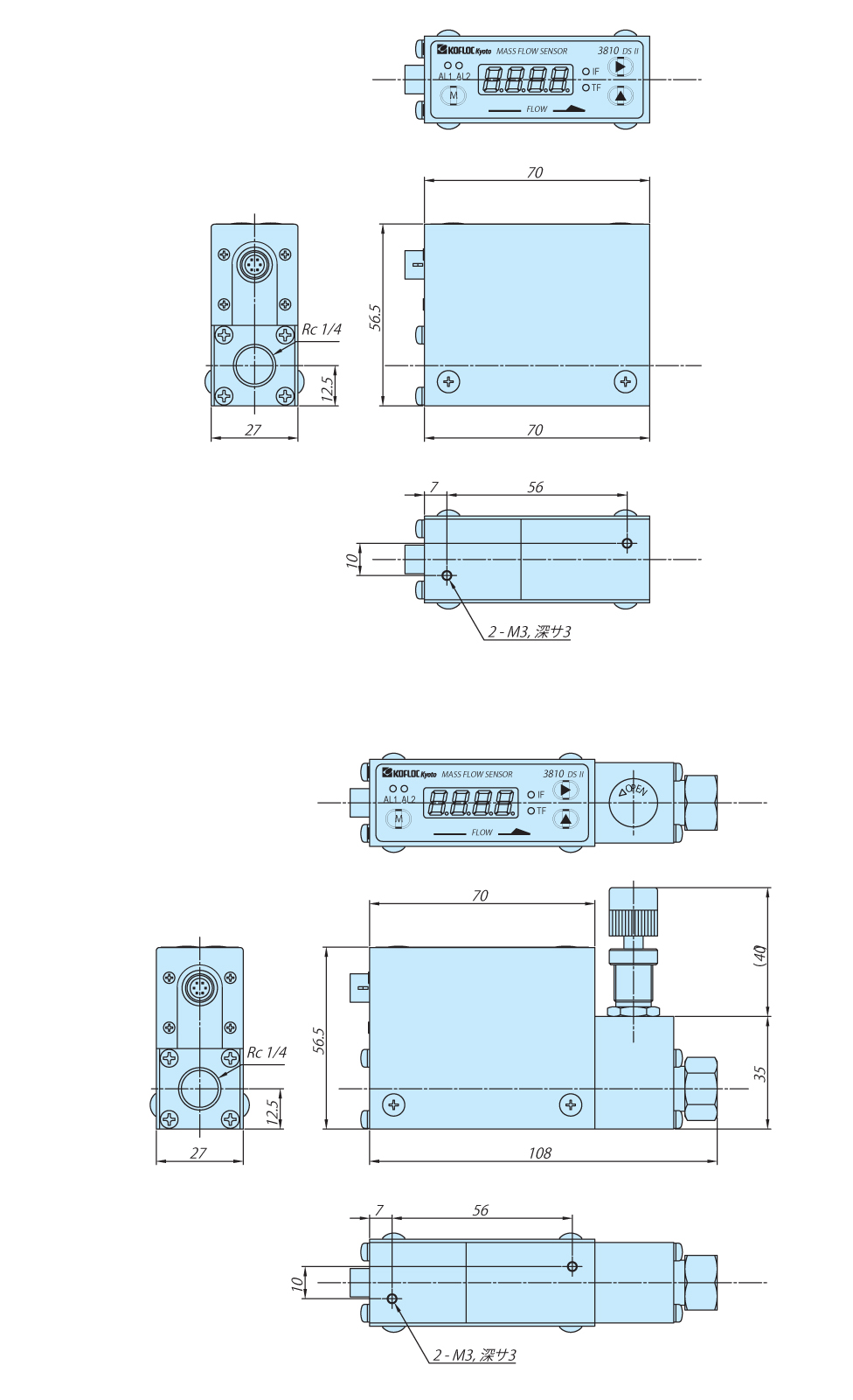

Dimension

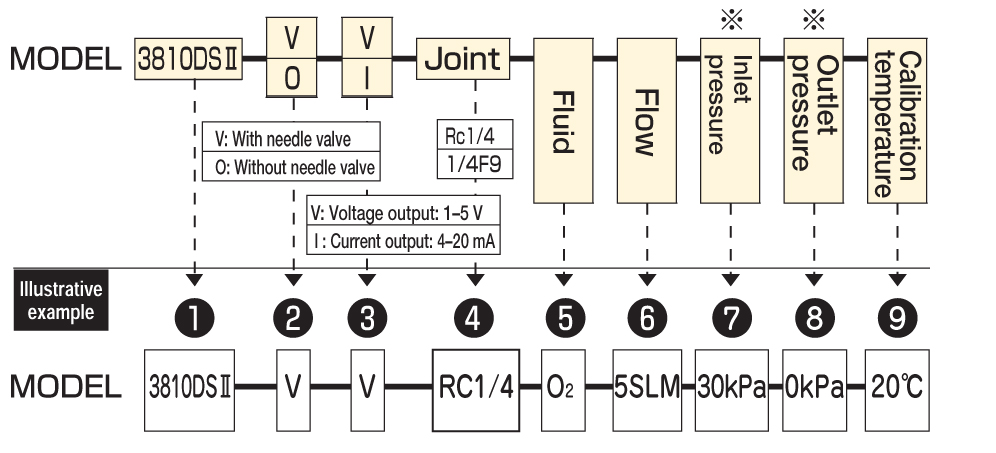

ORDERING
- Various joints other than our standard joints are also available (option).
- (7) and (8) are needed only when a model with needle valve is selected. External Cable: CP-38DS II CF - XM (Lengths:1m, 3m, and 5m)
- The power adapter and the external cable cannot be used together
