Mass FLow Controller/Mass Flow Meter with Indicator

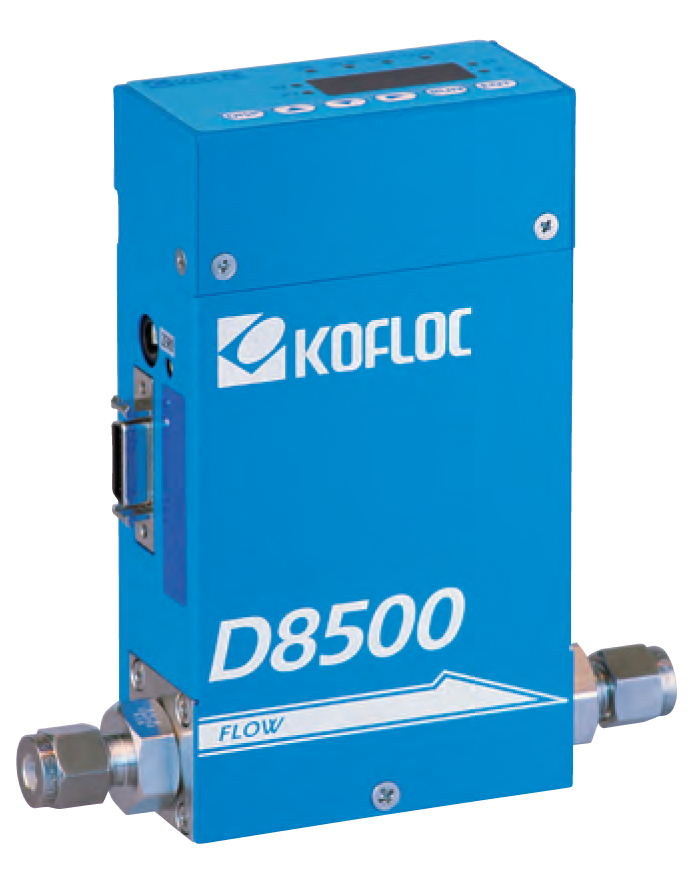

Model D8500 SeriesThis mass flow controller/meter driven by a 24 VDC power supply has been develope as a successor to the Model 8300.
The view point change function of the display unit and the pattern setting function are unique to this model, and noise resistance has been improved dramatically. A sister model with a detachable display and setting unit is also available
Features
- The high-lift actuator allows this compact model to control a large flow rate
- Equipped with a display and setting unit, this model can be operated by a 24 VDC power supply
- The RS232C/RS485 communication function and integration function are provided as standard equipment
- The 14-bit converter permits display and operation in 4-1/2 digits
- Control of the flow rate of inflammable gas is possible, because the heat generating part of the sensor is not exposed to gas.
- There are no mimitations on the mounting position that may be employed
- In addition to SV setting, five other patterns can be set.
- Auto zero and auto close functions are also standard

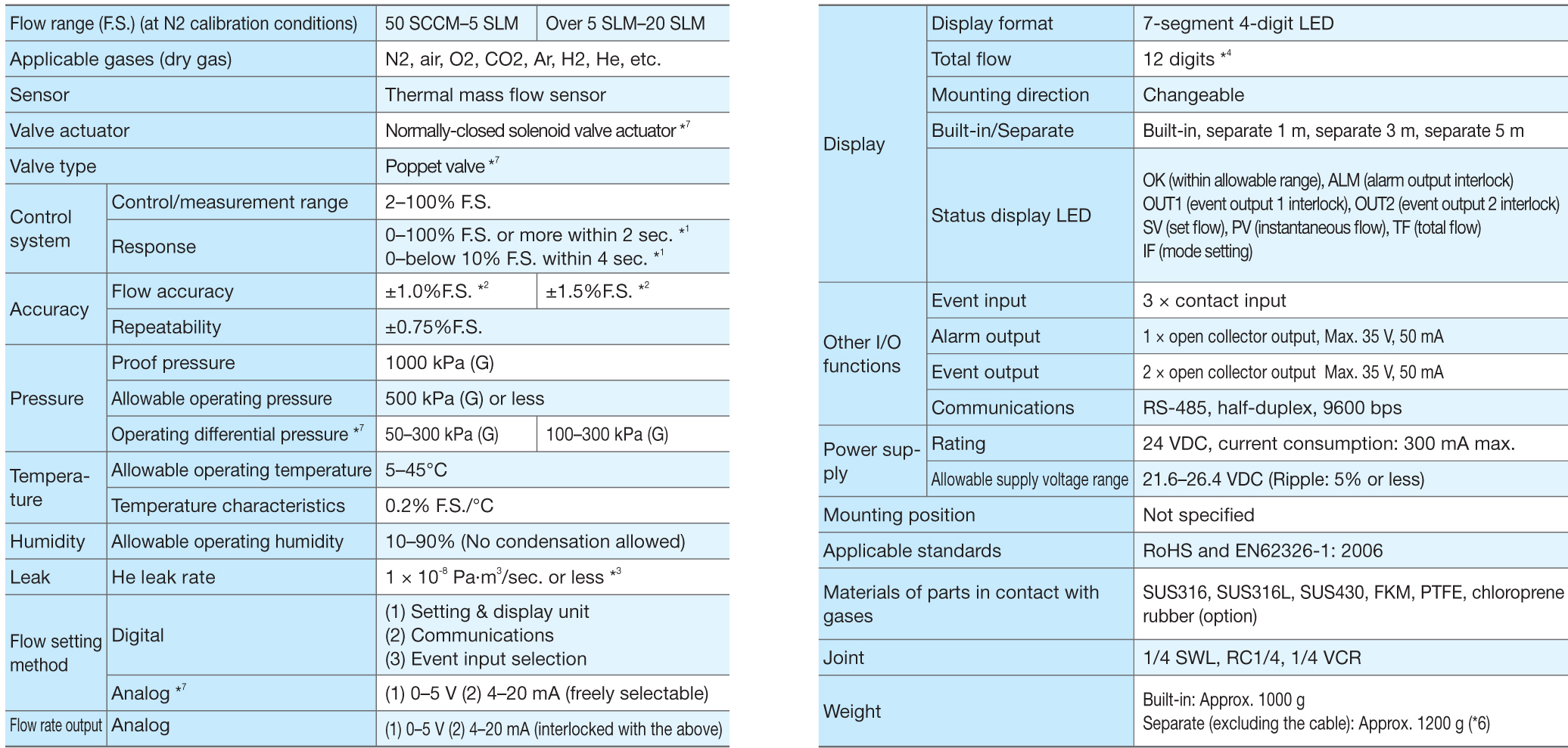

Standard Specifications
- Time required to reach the control flow ±2% F.S. from the fully closed
- Permeation is not included. The leakage by prolonged permeation shall not exceed 1 x 10-6 Pa.m3 / sec.
- The units of measurement vary with the full scale flow. E.g.: With 1 SLM, the flows can be added up to 9999 9999 9.9999L.
- For other joints, please contact us.
- The weight may slightly vary depending on the joint.
- These apply to the D8500MC mass flow controller

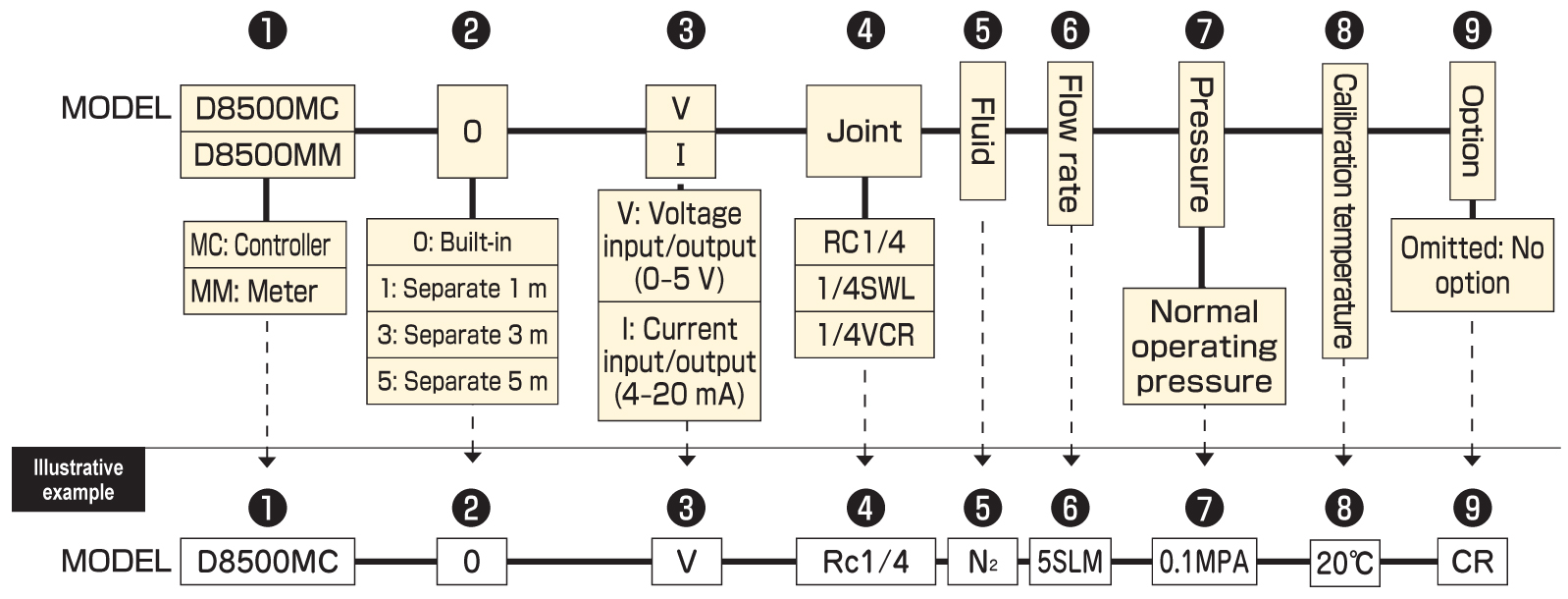

ORDERING
- Refer to "Ordering" and "Illustrative example" when placing an order or requesting a quotation. Fill in the blanks in the "Order/Quatation Request Card" at the end of the catalog, and send the card by fax.
- Various joints other than our standard joints are also available(option).
